DBA

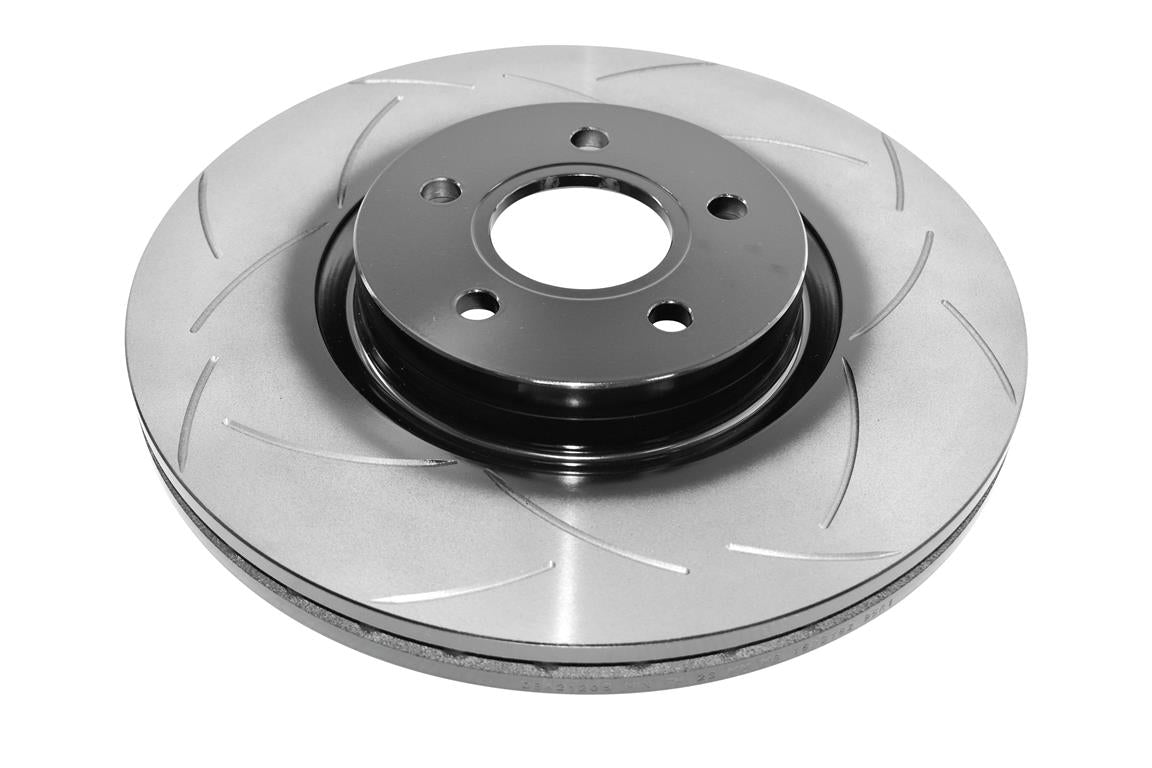

DBA2120S
DBA2120S
Regular price
€192,70 EUR
Regular price
Sale price
€192,70 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 320 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 64 |
| Minimum Thickness [mm] | 23 |
| Thickness [mm] | 25 |
| Height [mm] | 49 |
| Pitch Circle [mm] | 107.95 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60523*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| FORD | Focus (Mk2) | 2.5 Turbo ST 225BHP (2005-2011) | 2005-2011 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| FORD | Focus (Mk3) | 2.0 TD 185BHP (2014-2018) | 2014-2018 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Focus (Mk3) | 2.0 Turbo ST 250BHP (2011-2018) | 2011-2018 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 1.5 TD 120BHP (2016-2019) | 2016-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 1.5 TD 120BHP Electric Handbrake (2016-2019) | 2016-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 2.0 TD 140BHP (2013-2014) | 2013-2014 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 2.0 TD 150BHP FWD (2014-2019) | 2014-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 2.0 TD 150BHP FWD Electric Handbrake (2014-2019) | 2014-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 2.0 TD 161BHP (2013-2014) | 2013-2014 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 2.0 TD 180BHP 4WD (2014-2019) | 2014-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Kuga (Mk2) | 2.0 TD 180BHP 4WD Electric Handbrake (2014-2019) | 2014-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Tourneo Connect | 1.0 Turbo 100BHP (2013-) | 2013- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Tourneo Connect | 1.5 TD 100BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Tourneo Connect | 1.5 TD 120BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.0 Turbo 100BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.5 TD 101BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.5 TD 120BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.5 TD 75BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.6 TD 115BHP (2014-2016) | 2014-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.6 TD 75BHP (2014-2016) | 2014-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| FORD | Transit Connect | 1.6 TD 95BHP (2014-2016) | 2014-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2353 | Disc Diameter [mm]: 320 |
| VOLVO | C70 | 2.0 TD (2008-2013) | 2008-2013 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | C70 | 2.4 TD (2006-2013) | 2006-2013 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | C70 T5 | 2.5 Turbo (2006-2013) | 2006-2013 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | S40 | 2.0 TD (2006-2012) | 2006-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | S40 | 2.4 TD (2006-2012) | 2006-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | S40 T5 | 2.5 Turbo (2004-2005) | 2004-2005 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | S40 T5 | 2.5 Turbo (2005-2012) | 2005-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Cross Country D2 | 1.6 TD 115BHP (2012-) | 2012- | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Cross Country D3 | 2.0 TD 150BHP (2012-) | 2012- | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Cross Country D4 | 2.0 TD 190BHP (2012-) | 2012- | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Cross Country T3 | 1.6 Turbo 150BHP (2012-) | 2012- | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Cross Country T4 | 1.6 Turbo 180BHP (2012-) | 2012- | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Cross Country T5 | 2.5 Turbo 254BHP (2012-) | 2012- | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 1.5 Turbo 122BHP (2015-2019) | 2015-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 1.5 Turbo 152BHP (2015-2019) | 2015-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 1.6 TD (2012-2015) | 2012-2015 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 1.6 Turbo 150BHP (2012-2015) | 2012-2015 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 1.6 Turbo 180BHP (2012-2015) | 2012-2015 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 2.0 (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 2.0 TD (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 2.0 Turbo (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V40 Mk2 | 2.5 Turbo (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 | 2.0 (2006-2012) | 2006-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 | 2.0 TD (2005-2012) | 2005-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 | 2.4 (2004-2005) | 2004-2005 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 | 2.4 (2005-2012) | 2005-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 | 2.4 TD (2006-2012) | 2006-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 T5 | 2.5 Turbo (2004-2005) | 2004-2005 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
| VOLVO | V50 T5 | 2.5 Turbo (2005-2012) | 2005-2012 | Brake Caliper: ATE | Front | Brake Pads: DB2176 | Disc Diameter [mm]: 320 |
