DBA

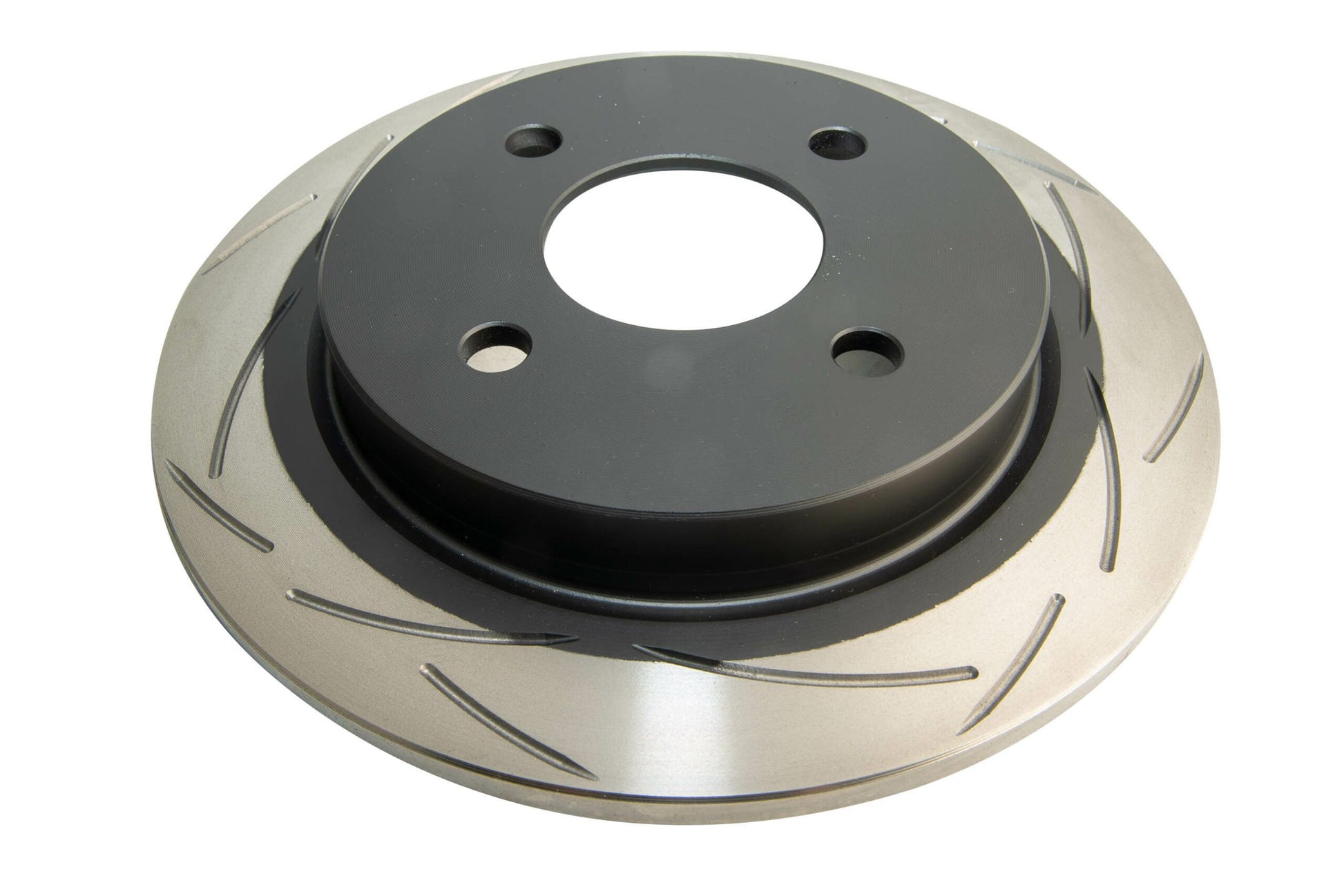

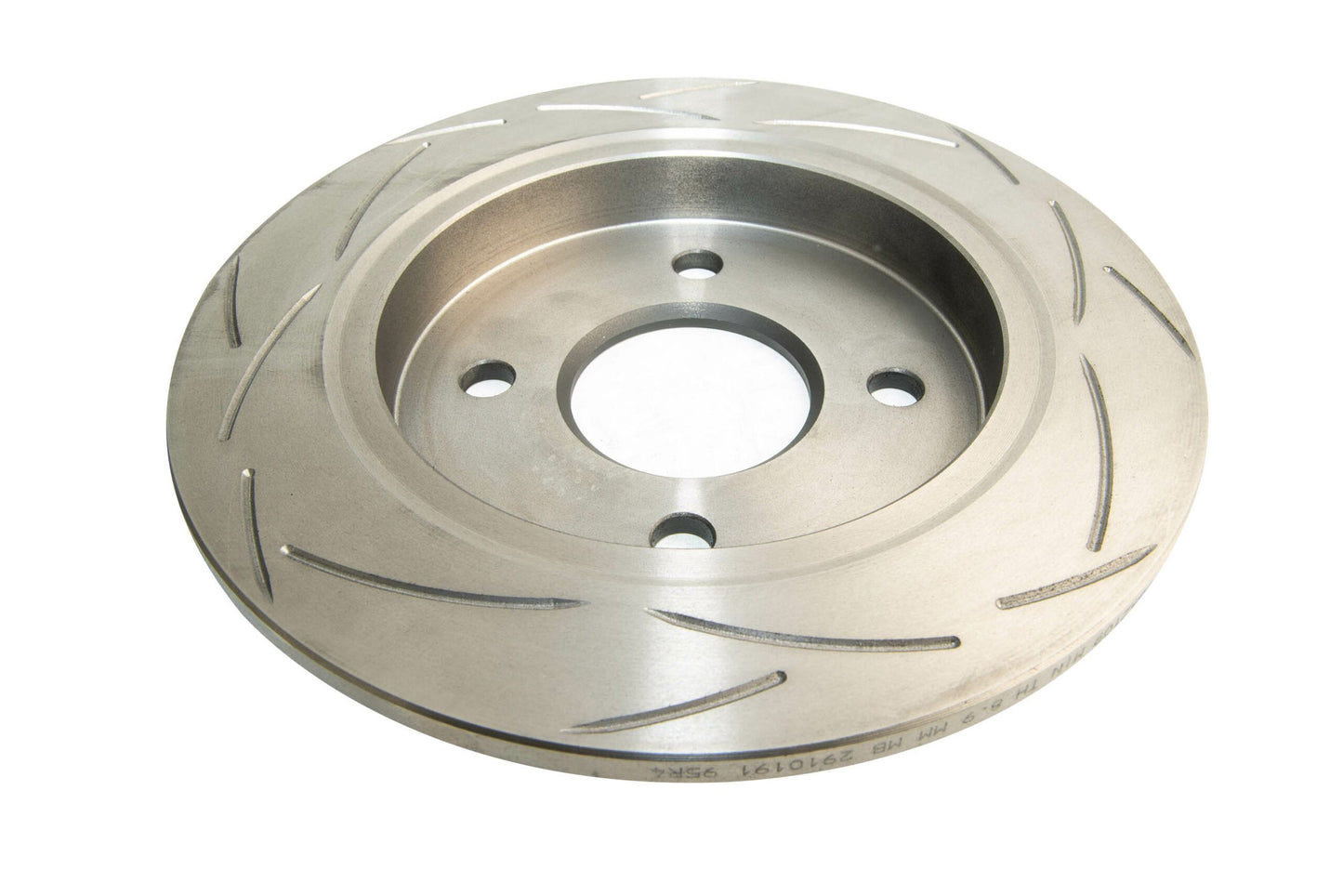

DBA2109S
DBA2109S
Regular price
€160,13 EUR
Regular price
Sale price
€160,13 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 253 |
| Disc Vent | Solid |
| Number of Holes | 4 |
| Inner Diameter [mm] | 63.5 |
| Minimum Thickness [mm] | 8,9 |
| Thickness [mm] | 10 |
| Height [mm] | 33 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11 90R-02C01704/72738 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| FORD | Fiesta (Mk6) | 2.0 ST 150BHP (2004-2008) | 2004-2008 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Fiesta (Mk7) | 1.6 Turbo ST 182BHP (2012-2017) | 2012-2017 | Brake Caliper: TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Fiesta (Mk7) | 1.6 Turbo ST 200BHP (2016-2017) | 2016-2017 | Brake Caliper: TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Focus (Mk1) | 1.4 (1998-2005) | 1998-2005 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Focus (Mk1) | 1.6 (1998-2005) | 1998-2005 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Focus (Mk1) | 1.8 (1998-2005) | 1998-2005 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Focus (Mk1) | 1.8 TD (1998-2005) | 1998-2005 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Focus (Mk1) | 2.0 (1998-2005) | 1998-2005 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Puma Racing | 1.7 (1999-2000) | 1999-2000 | Brake Caliper: Girling/TRW | Rear | Brake Pads: DB1759 | Disc Diameter [mm]: 253 |
| FORD | Scorpio | 2.0 Saloon (1994-2000) | 1994-2000 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Scorpio | 2.3 Saloon (1996-2000) | 1996-2000 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Scorpio | 2.5 TD Saloon (1994-2000) | 1994-2000 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Scorpio | 2.9 Saloon (1994-2000) | 1994-2000 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 1.8 ABS (1987-1993) | 1987-1993 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.0 (1987-1990) | 1987-1990 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.0 (1990-1993) | 1990-1993 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.0 4x4 (1990-1993) | 1990-1993 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.0 ABS (1987-1993) | 1987-1993 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.0 Turbo Cosworth (1985-1986) | 1985-1986 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.8 XR 4x4 (1985-1990) | 1985-1990 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| FORD | Sierra | 2.9 XR 4x4 (1989-1993) | 1989-1993 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| PANTHER | Kallista | 2.8 (1983-1987) | 1983-1987 | Brake Caliper: Girling/TRW | Rear | Disc Diameter [mm]: 253 | |
| TVR | Chimaera | 4.0 (1993-1994) | 1993-1994 | Rear | Disc Diameter [mm]: 253 | ||
| TVR | Chimaera | 4.3 (1993-1994) | 1993-1994 | Rear | Disc Diameter [mm]: 253 | ||
| TVR | Griffith | 4.0 (1992-2002) | 1992-2002 | Rear | Disc Diameter [mm]: 253 | ||
| TVR | Griffith | 4.3 (1992-2002) | 1992-2002 | Rear | Disc Diameter [mm]: 253 | ||
| TVR | S | 3.9 (1991-1993) | 1991-1993 | Rear | Disc Diameter [mm]: 253 | ||
