CSCCV201

Xtreme Clutch now offer a universal style performance concentric slave cylinder (CSC)for motorsport and gearbox conversion applications.

The new CSC was designed in-house at Xtreme Clutch and incorporates a billet 6061 alloyhousing, high quality EPDM rubber seals and a threaded adjustment sleeve (where required)for universal applications.

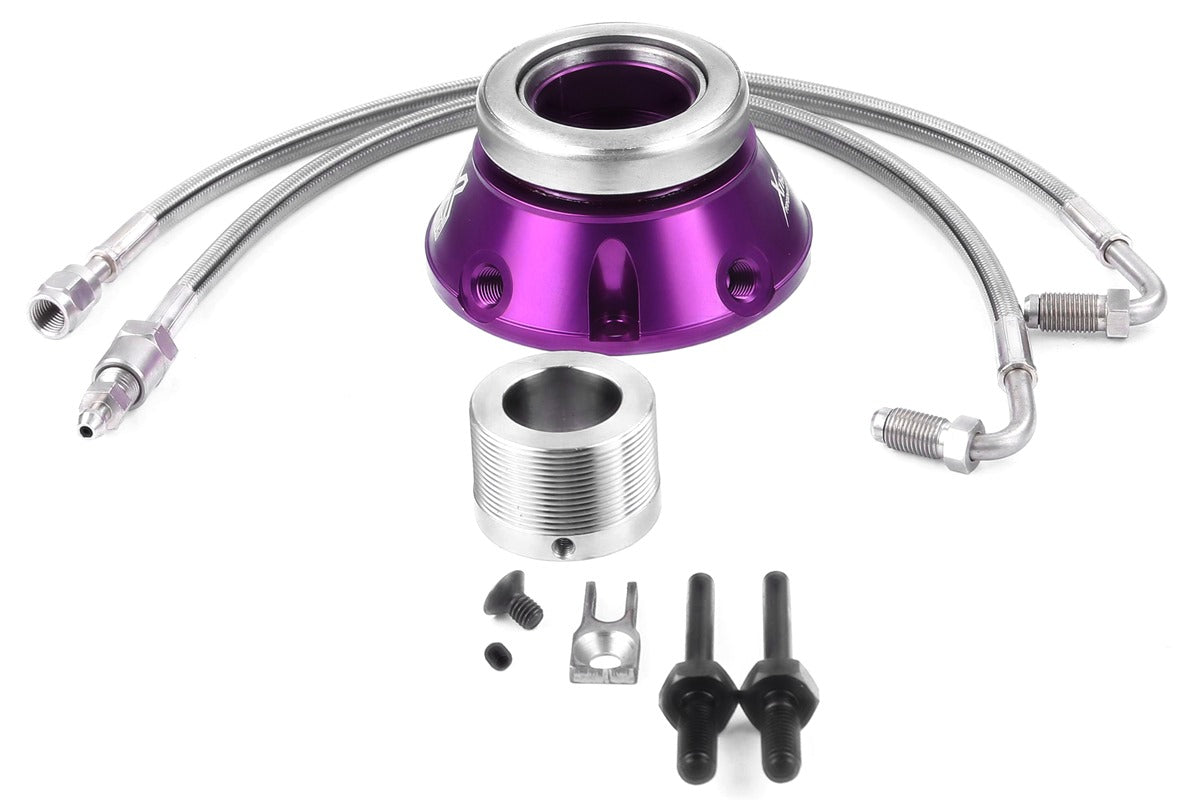

The CSC is available in kit form for various popular conversion applications and these kitsinclude an adaptor plate and braided clutch and bleeder lines (as required).

Slide on 25mm nose cone (adjustable height up to 18mm)

Braided clutch and bleed lines. M8x1.25 + 5/16" guide pins. 25mm bore adjustable sleeve.

• Bearing / Clutch Contact Diameter (mm): 51
• Usable Piston Travel (mm): 17
• Adjustability (mm): 16
• Extension Height (mm): 79
• Min. Compression Height (mm): 46
