ACL
8B2356H-010
8B2356H-010
Regular price
€175,37 EUR
Regular price
Sale price
€175,37 EUR
Quantity
Couldn't load pickup availability

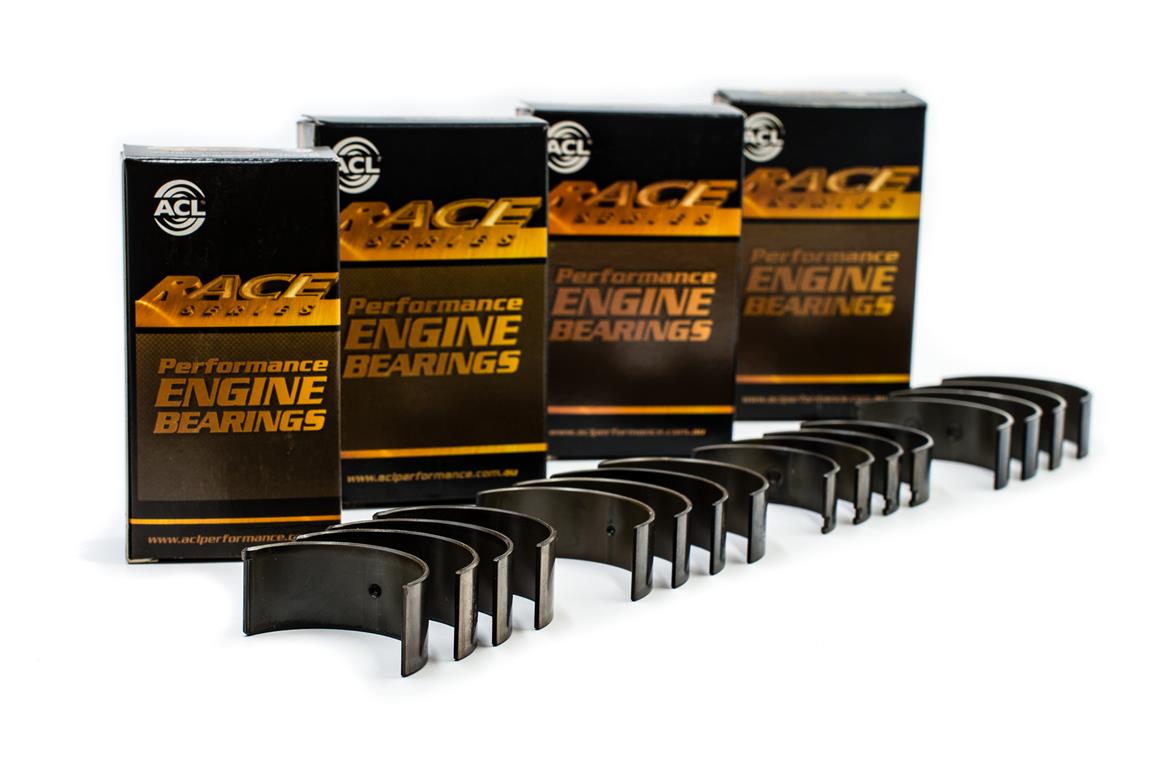

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 57.142 / 57.160 |
| Shaft [mm] | 53.950 / 53.975 |
| Max. Wall | 1.572 |
| Max. Length | 19.75 |
| Half type | Upper & lower |
| Compatibility | |||||
|---|---|---|---|---|---|
| Holden | Commodore VB, Kingswood, Monaro, Premier HG, HJ, HQ, HT, HX, HZ, Statesman HQ, Torana LH, LX | OHV 16v | 253 Red Motor | 8B2356H | -10 |
| Holden | Commodore VC, VH, Ute WB | OHV 16v | 253 Blue Motor | 8B2356H | -10 |
| Holden | Commodore VB, Kingswood, Monaro, Premier HG, HJ, HQ, HT, HX, HZ, Statesman HJ, HQ, HX, HZ, Torana, LH, LX | OHV 16v | 308 Red Motor | 8B2356H | -10 |
| Holden | Commodore VC, VH, VK, Statesman WB, WBII | OHV 16v | 308 Blue Motor | 8B2356H | -10 |
| Holden | Commodore VL | OHV 16v | 5.0L | 8B2356H | -10 |
| Holden | Commodore VL | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Commodore VN | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Commodore VP | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Commodore VR | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Commodore VS | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Commodore VT | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Caprice VQ | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Caprice VQII | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Caprice VR | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Caprice VS | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Caprice Ute VG | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Caprice VP | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | HSV Clubsport VN | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | HSV Clubsport VP | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | HSV Clubsport VR | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | HSV Clubsport VS | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | HSV Clubsport VT | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Senator VP | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Senator VR | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Senator VT | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Maloo | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Manta | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | XU8 | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Statesman VQ | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Statesman VQII | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Statesman VR | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Statesman VS | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Statesman Ute VG | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | Statesman VP | OHV 16v EFI | 5.0L EFI | 8B2356H | -10 |
| Holden | HSV Caprice VR | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Caprice VS | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Caprice GTS VR | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Caprice VT | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | Senator VS, Grange VSII | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | Grange VSII | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Statesman VR | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Statesman VS | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Statesman GTS VR | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
| Holden | HSV Statesman VT | OHV 16v EFI | 5.7L Stroker | 8B2356H | -10 |
