ACL
7M2158H-010
7M2158H-010
Regular price
€229,65 EUR
Regular price
Sale price
€229,65 EUR
Quantity
Couldn't load pickup availability

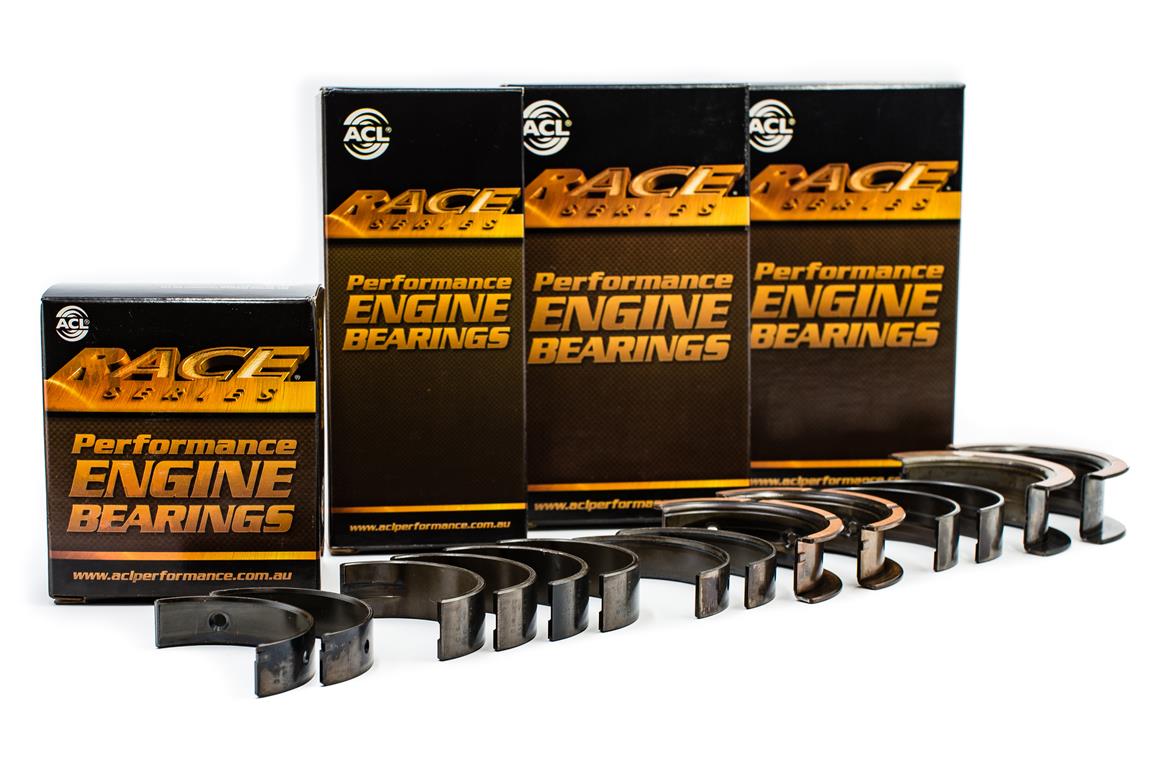

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 65.791/65.811 |
| Shaft [mm] | 60.914/60.935 |
| Max. Wall | 2.423 |
| Max. Length | 25.9 |
| Half type | Upper & Lower |
| Compatibility | |||||
|---|---|---|---|---|---|
| Ford | Cortina, Fairlane ZA, ZB, ZD, ZF, Fairmont XA, XB, XP, XR, Falcon XA, XB, XL, XM, XP, XR, XY | OHV 12v | 200 Non X Flow | 7M2158H | -10 |
| Ford | Falcon EA | SOHC 12v | 3.2L | 7M2158H | -10 |
| Ford | Cortina, F100, Fairmont XC, XD | OHV 12v | 3.3L X Flow Cast Iron Head | 7M2158H | -10 |
| Ford | Fairlane NA, NC, Falcon EA, EB, LTD DA, DC | SOHC 12v | 3.9L | 7M2158H | -10 |
| Ford | Fairlane NB, NC, Fairmont EB, ED, Falcon EB, ED, XF, LTD | SOHC 12v | 4.0L EB-ED | 7M2158H | -10 |
| Ford | Cortina | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Fairlane ZD | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Fairlane ZF | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Fairlane ZG | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Fairmont XA | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Fairmont XB | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Fairmont XY | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Falcon XA | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Falcon XB | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Falcon XY | OHV 12v | 250 Non X Flow | 7M2158H | -10 |
| Ford | Cortina | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Fairmont XD | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Fairmont XE | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Fairmont XF | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Falcon XD | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Falcon XE | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Falcon XF | OHV 12v | 3.3L X Flow Alloy Head | 7M2158H | -10 |
| Ford | Fairlane NF | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Fairlane NL | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Fairmont EF | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Fairmont EL | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Fairmont XR6 | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Fairmont Longreach Ute | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Falcon EF | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Falcon EL | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Falcon XR6 | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Longreach Ute | SOHC 12v | 4.0L EF-EL | 7M2158H | -10 |
| Ford | Fairlane ZJ | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairlane ZK | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairlane ZL | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont XD | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont XE | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont XF | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont LTD | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon XD | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon XE | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon XF | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon LTD | OHV 12v | 4.1L X Flow Alloy Head (250 X Flow) | 7M2158H | -10 |
| Ford | Cortina | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairlane ZH | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairlane ZJ | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont XC | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont XD | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Fairmont LTD | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon XC | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon XD | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
| Ford | Falcon LTD | OHV 12v | 4.1L X Flow Cast Iron Head (250 X Flow) | 7M2158H | -10 |
