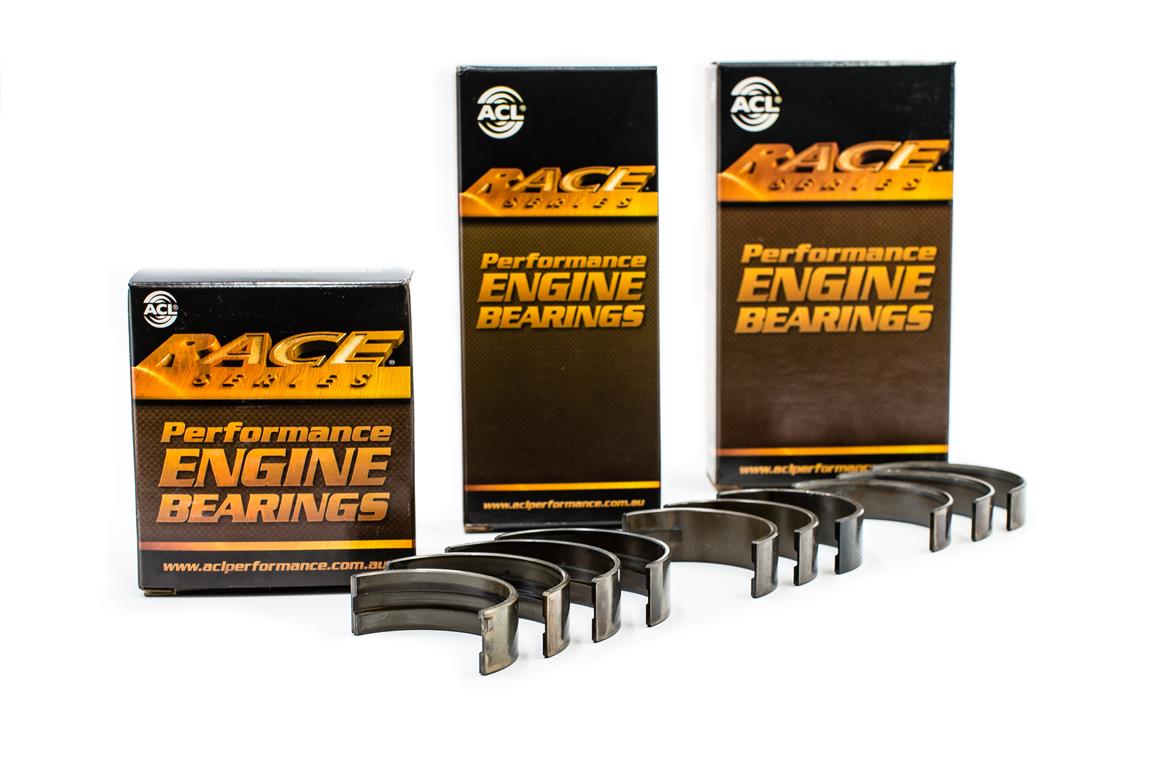

5M7296H-.25

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Tunnel [mm]	72.400/72.423
Shaft [mm]	67.480/67.506
Max. Wall	2.443
Max. Length	19.26
Half type	Upper
Note	Includes 3 thrustwashers to be used in #5 position. Windsor engine.

Compatibility
Ford	USA Models	SOHC	4.6L SOHC VIN 6, W, X Windsor Cast Iron Block	5M7296H	-.25
Ford	Fairmont, Fairlan, F250, F350	SOHC 16v & 24v	5.4L	5M7296H	-.25
Ford	FPV GT, GT-P, Pursuit, XR8	DOHC 32v	5.4L	5M7296H	-.25
Ford	USA models	SOHC 16v	5.4L Supercharged	5M7296H	-.25
