ACL

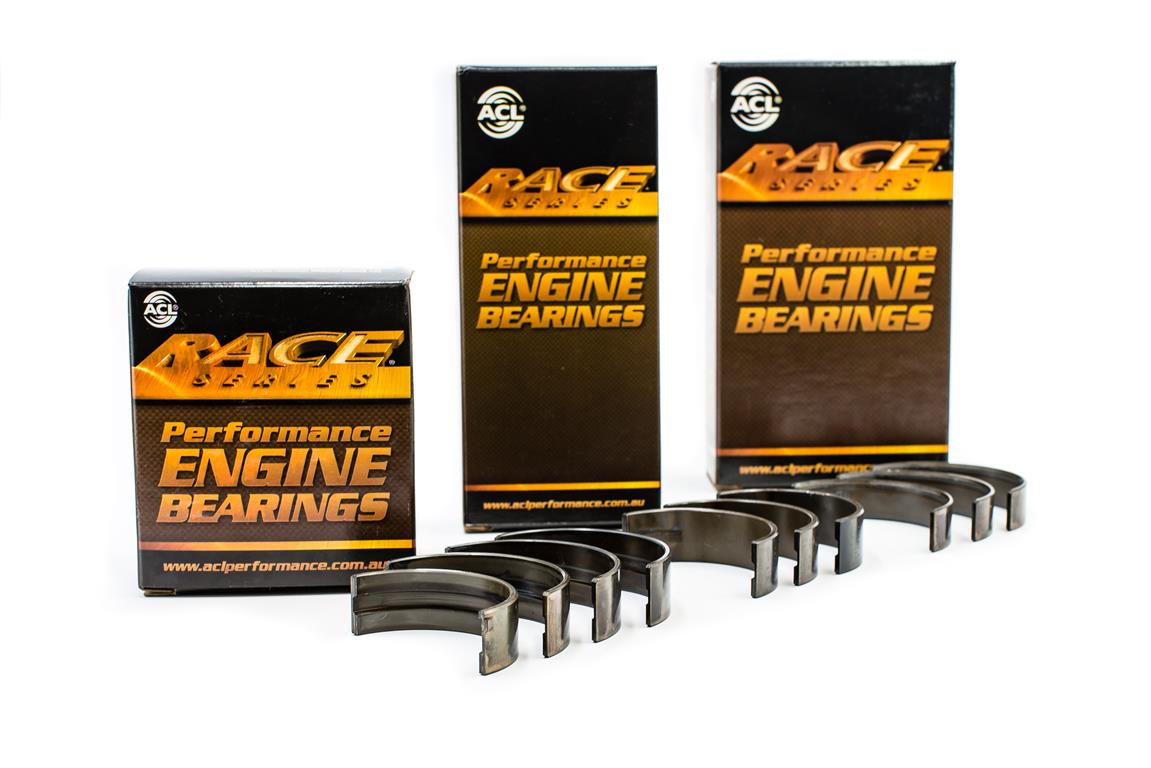

5M1186H-.025
5M1186H-.025
Regular price
€162,59 EUR
Regular price
Sale price
€162,59 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 61.000 / 61.021 |
| Shaft [mm] | 56.985 / 57.000 |
| Max. Wall | 1.990 |
| Max. Length | 20.63 for slots #1,2,4,5 | 25.40 for slot #3 |
| Half type | Narrow parts are upper & lower shells. |
| Note | Standard width flanges for all undersizes. |
| Compatibility | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mitsubishi | Space Wagon (N9_W, N8_W) | 2.0 16V | 10.1998 - 12.2004 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 2.0 16V | 11.1992 - 08.1996 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) | 2.0 16V | 06.1996 - 03.2001 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 16V | 07.2007 - 09.2013 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 2.0 16V | 04.1993 - 03.1995 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VIII (EA_) | 2.0 16V | 09.1996 - 09.2000 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VIII (EA_) | 2.0 16V | 09.2000 - 10.2004 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 2.0 16V | 09.1996 - 09.2000 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 2.0 16V | 09.2000 - 10.2003 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 2.0 16V | 06.1996 - 12.2007 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 2.0 16V | 10.1992 - 10.1998 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 2.0 16V | 05.2000 - 08.2002 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 2.0 16V | 08.1999 - 08.2002 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 16V | 06.1994 - 05.2003 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Platform/Chassis (P1_T ) | 2.0 16V | 06.1994 - 04.2000 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Platform/Chassis (P1_T ) | 2.0 16V | 07.1994 - 04.2000 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 16V | 06.1994 - 05.2002 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Delica / Space Gear | 2.0 16V | 09.1995 - 10.2002 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) | 2.0 16V | 09.1995 - 10.2002 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) | 2.0 16V | 12.1994 - 10.2002 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) | 2.0 16V | 05.1995 - 05.2000 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 2.0 16V 4WD | 10.1992 - 10.1998 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 16V 4WD | 06.1994 - 05.2003 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 2.0 16V | 11.1992 - 08.1996 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 2.0 16V | 11.1992 - 08.1996 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 2.0 16V 4WD | 11.1992 - 08.1996 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 2.0 16V 4WD | 11.1992 - 08.1996 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 16V | 06.1994 - 10.1998 | 4G63 (SOHC 16V) | 4 | 5M1186H | 1997 cc | SOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 85.0 | 88.0 |
| Fiat | Fullback Pickup (502_, 503_) | 2.4 | 04.2016 - | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Fiat | Fullback Pickup (502_, 503_) | 2.4 4x4 | 04.2016 - | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 2.4 | 11.2014 - | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Eclipse III (D5_A) | 2.4 | 05.1999 - 03.2005 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 2.4 | 11.2005 - 12.2015 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 2.4 | 11.1998 - 04.2004 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) | 2.4 | 06.1996 - 02.2006 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) | 2.4 | 05.1995 - 06.2005 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Outlander I (CU_W) | 2.4 4WD | 05.2003 - 10.2006 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 2.4 4WD | 06.1996 - 12.2007 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) | 2.4 4WD | 09.1996 - 06.2005 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 2.4 | 04.2010 - 04.2018 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 / Triton Platform/Chassis (KA_T, KB_T) | 2.4 | 04.2007 - 12.2015 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Eclipse Convertible (D5_A) | 2.4 | 05.1999 - 03.2005 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 2.4 | 10.1996 - 12.2006 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L200 Platform/Chassis (K6_T, K7_T) | 2.4 | 10.1996 - 12.2006 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 2.4 | 10.1992 - 10.1998 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.4 | 09.1994 - 05.2004 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) | 2.4 4WD | 05.1995 - 05.2000 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Galant VIII (EA_) | 2.4 GDI | 09.2000 - 10.2004 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 2.4 GDI | 02.1999 - 10.2003 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 2.4 GDI | 08.1999 - 01.2003 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 2.4 GDI | 10.1998 - 12.2004 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 2.4 GDI 4WD | 10.1998 - 12.2004 | 4G64 (DOHC 16V) | 4 | 5M1186H | 2351 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits early models manufactured until 01.1997. | 86.5 | 100.0 |
| Mitsubishi | Sapporo III (E16A) | 2.4 | 06.1987 - 08.1990 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.4 | 11.1990 - 05.2004 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.4 | 11.1986 - 08.1997 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | Pajero II Canvas Top (V2_C, V4_C) | 2.4 | 04.1991 - 04.2000 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | Pajero II (V3_W, V2_W, V4_W, V5_W) | 2.4 | 04.1991 - 10.1999 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.4 4WD | 11.1986 - 08.1997 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.4 4WD | 08.1986 - 05.2004 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | Galant V (E1_A) | 2.4 | 06.1985 - 04.1990 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 2.4 | 09.1989 - 10.1996 | 4G64 (SOHC 8V) | 4 | 5M1186H | 2351 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits late models manufactured from 01.1992. | 86.5 | 100.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 8V | 09.1987 - 01.1992 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 8V | 04.1989 - 10.1992 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 8V | 11.1987 - 10.1992 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 8V | 11.1986 - 05.2004 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 8V | 06.1994 - 05.1996 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 2.0 8V 4WD | 02.1987 - 05.1994 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 8V 4WD | 03.1985 - 04.1991 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 8V 4WD | 04.1989 - 10.1992 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 8V 4WD | 12.1988 - 10.1992 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 / Delica II Bus (L03_P/G, L0_2P) | 2.0 8V 4WD | 11.1986 - 02.1987 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 8V 4WD | 12.1986 - 05.2004 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 8V 4WD | 08.1988 - 05.1994 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant IV (A16_) | 2.0 8V | 09.1980 - 05.1984 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant V (E1_A) | 2.0 8V | 06.1984 - 04.1990 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 2.0 8V | 09.1980 - 06.1983 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Tredia (A21_) | 2.0 8V 4WD | 10.1986 - 03.1988 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 8V 4WD | 06.1988 - 04.1991 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Sapporo II (A16_A) | 2.0 8V | 08.1980 - 08.1983 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Sapporo II (A16_A) | 2.0 8V | 08.1980 - 09.1984 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Hyundai | Stellar (F31_, SF_2) | 2.0 8V | 05.1984 - 12.1989 | 4G63 (SOHC 8V) | 4 | 5M1186H | 1997 cc | SOHC 8V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 2.0 16V | 12.2003 - 12.2013 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer CARGO Estate Van (CS_W) | 2.0 16V | 09.2003 - 06.2008 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | 2.0 16V | 09.2003 - 12.2007 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Outlander I (CU_W) | 2.0 16V | 05.2003 - 10.2006 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Santamo (UG) | 2.0 16V | 05.1999 - 12.2004 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 2.0 16V | 06.1997 - 08.1999 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Santamo (UG) | 2.0 16V 4WD | 05.1999 - 12.2004 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Outlander I (CU_W) | 2.0 16V 4WD | 05.2003 - 10.2006 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 GTI 16V | 11.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 GTi 16V 4WD | 07.1989 - 12.1992 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 GTi 16V 4WD | 09.1991 - 10.1992 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 GTI 16V | 09.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 GTi 16V 4WD | 11.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 GTi 16V 4WD | 09.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 16V | 04.1991 - 11.1995 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 16V | 04.1991 - 11.1995 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse II (D3_A) | 2.0 16V | 12.1995 - 04.1999 | 4G63 (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse Convertible | 2.0 Turbo | 09.1995 - 04.1999 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 Turbo | 12.1989 - 03.1994 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 Turbo 4WD | 12.1989 - 03.1994 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse II (D3_A) | 2.0 Turbo | 04.1994 - 04.1999 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Eclipse II (D3_A) | 2.0 Turbo 4WD | 04.1994 - 04.1999 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 VR4 Turbo 4WD | 10.1990 - 03.1993 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Outlander I (CU_W) | 2.0 Turbo 4WD | 04.2004 - 10.2006 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Carisma Saloon (DA_) | 2.0 16V GT EVO VI/VII | 11.1999 - 06.2006 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 Turbo | 09.1988 - 12.1992 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 Turbo 4WD | 09.1988 - 12.1992 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | EVO IV | 08.1996 - 12.1997 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | EVO I | 10.1992 - 12.1993 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | EVO II | 01.1994 - 07.1995 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | EVO III | 08.1995 - 07.1996 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VI (CJ_, CP_) | EVO V | 01.1998 - 12.1998 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VI (CJ_, CP_) | EVO VI | 01.1999 - 02.2001 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | EVO VII | 01.2001 - 01.2003 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | EVO VIII | 04.2003 - 08.2006 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | EVO IX | 01.2005 - 10.2008 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | EVO IX | 09.2005 - 03.2007 | 4G63-T (DOHC 16V) | 4 | 5M1186H | 1997 cc | DOHC 16V | -.025 | Plain mains are 21mm wide, flanges are 25.4mm. Suits mid models manufactured between 01.1992 and 01.1997. | 85.0 | 88.0 |
