ACL

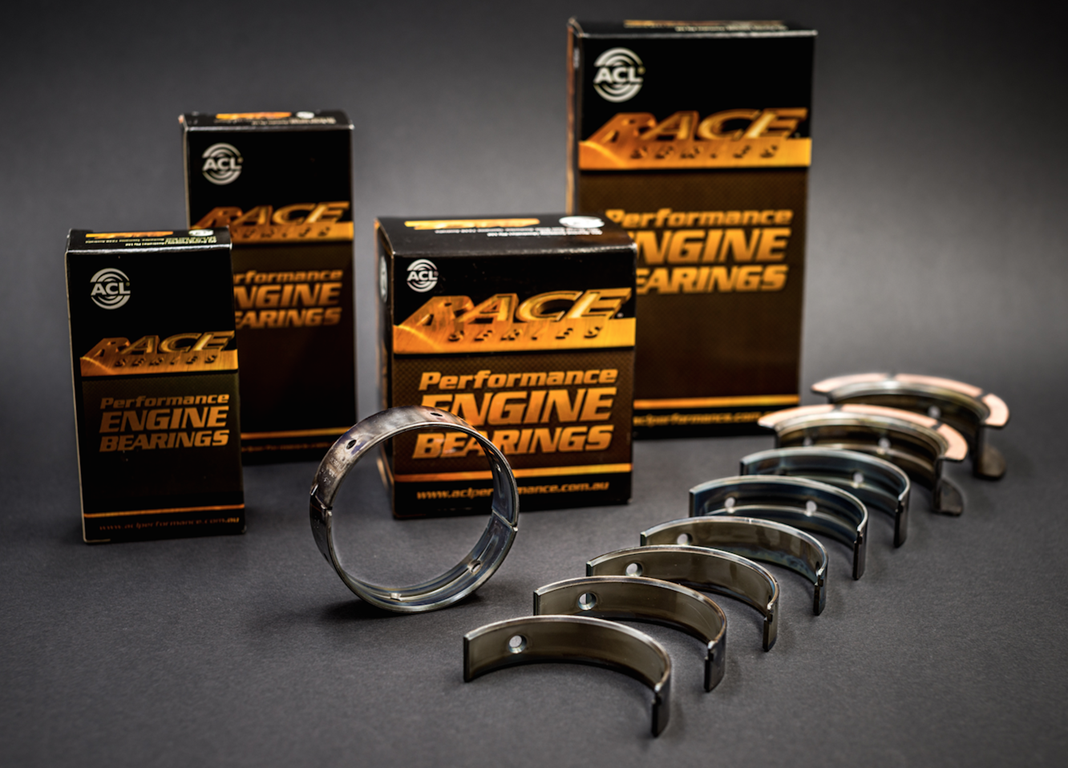

4M2273H-.25
4M2273H-.25
Regular price
€391,24 EUR
Regular price
Sale price
€391,24 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 72.866/72.882 |
| Shaft [mm] | 67.992/68.008 |
| Max. Wall | 2.422 |
| Max. Length | 19.75 |
| Half type | Upper & lower |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Alfa Romeo | 147 | 3.2 GTA | 08.2008 - 03.2010 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | 159 | 3.2 JTS | 01.2008 - 11.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | 159 | 3.2 JTS Q4 | 12.2005 - 11.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | 159 Sportswagon | 3.2 JTS | 02.2008 - 11.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | 159 Sportswagon | 3.2 JTS Q4 | 03.2006 - 11.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | Brera | 3.2 JTS | 03.2008 - 06.2010 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | Brera | 3.2 JTS Q4 | 01.2006 - 05.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | GT | 3.2 GTA | 08.2008 - 09.2010 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | Spider | 3.2 JTS | 03.2008 - 03.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Alfa Romeo | Spider | 3.2 JTS Q4 | 03.2006 - 03.2011 | 939 A.000 | 6 | 4M2273H | 3196 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Cadillac | CTS | 2.8 | 03.2005 - 09.2007 | LP1 (HFV6) | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Cadillac | SRX | 2.8 AWD | 01.2009 - 12.2016 | LAU (HFV6) | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Buick | La Crosse | 3.0 | 09.2009 - | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Buick | La Crosse | 3.0 AWD | 09.2009 - | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Buick | Allure | 3.0 | 09.2009 - 12.2010 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Buick | Allure | 3.0 AWD | 09.2009 - 12.2010 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | CTS | 3.0 | 01.2008 - | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | CTS | 3.0 AWD | 01.2008 - 10.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | CTS Coupe | 3.0 | 01.2010 - 12.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | CTS Coupe | 3.0 AWD | 01.2010 - 12.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | CTS Sport Wagon | 3.0 | 01.2008 - 12.2011 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | CTS Sport Wagon | 3.0 AWD | 01.2008 - 12.2010 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | SRX | 3.0 | 01.2009 - 12.2016 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Cadillac | SRX | 3.0 AWD | 01.2009 - 12.2016 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Chevrolet | Captiva | 3.0 AWD | 11.2010 - 09.2018 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Chevrolet | Captiva Sport | 3.0 | 01.2012 - | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Chevrolet | Captiva Sport | 3.0 AWD | 01.2012 - | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Chevrolet | Equinox | 3.0 | 09.2009 - 12.2010 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Chevrolet | Equinox | 3.0 AWD | 09.2009 - 12.2012 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Buick | La Crosse | 3.6 | 09.2013 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | La Crosse | 3.6 AWD | 07.2015 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | La Crosse | 3.6 Flex | 09.2011 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | La Crosse | 3.6 Flex AWD | 09.2011 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | ATS | 3.6 Flex | 07.2013 - 12.2015 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | ATS | 3.6 Flex AWD | 07.2013 - 12.2015 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | ATS Coupe | 3.6 | 01.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | ATS Coupe | 3.6 Flex | 07.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | ATS Coupe | 3.6 Flex AWD | 07.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 | 09.2011 - 12.2012 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 AWD | 09.2011 - 12.2012 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 Flex | 07.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 Flex AWD | 07.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Coupe | 3.6 | 09.2011 - 12.2012 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Coupe | 3.6 AWD | 09.2011 - 12.2012 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Coupe | 3.6 Flex | 09.2012 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Coupe | 3.6 Flex AWD | 09.2012 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Sport Wagon | 3.6 | 09.2011 - 12.2012 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Sport Wagon | 3.6 AWD | 09.2011 - 12.2012 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Sport Wagon | 3.6 Flex | 09.2011 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Sport Wagon | 3.6 Flex AWD | 09.2012 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | SRX | 3.6 | 01.2012 - 04.2016 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | SRX | 3.6 AWD | 01.2012 - 04.2016 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | SRX | 3.6 Flex | 09.2011 - 12.2016 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | SRX | 3.6 Flex AWD | 09.2011 - 12.2016 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | XTS | 3.6 | 09.2011 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | XTS | 3.6 AWD | 04.2012 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Camaro | 3.6 | 09.2011 - 12.2017 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Colorado Crew Cab | 3.6 | 09.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Colorado Crew Cab | 3.6 AWD | 09.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Colorado Extended Cab | 3.6 | 09.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Colorado Extended Cab | 3.6 AWD | 09.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Equinox | 3.6 | 07.2013 - 12.2017 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Equinox | 3.6 AWD | 07.2013 - 12.2017 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Equinox | 3.6 Flex | 09.2012 - 12.2017 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Equinox | 3.6 Flex AWD | 09.2012 - 12.2017 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Impala | 3.6 | 09.2011 - 12.2014 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Impala | 3.6 Flex | 07.2013 - 12.2014 | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Canyon Pickup | 3.6 | 09.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Canyon Pickup | 3.6 AWD | 09.2014 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Terrain | 3.6 | 09.2012 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Terrain | 3.6 AWD | 07.2013 - | LFX (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Enclave | 3.6 | 09.2008 - 04.2017 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Enclave | 3.6 AWD | 09.2008 - 04.2017 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | La Crosse | 3.6 | 09.2013 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | La Crosse | 3.6 AWD | 07.2015 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 | 01.2008 - 09.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 AWD | 01.2008 - 09.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Coupe | 3.6 | 01.2008 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Coupe | 3.6 AWD | 09.2010 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Sport Wagon | 3.6 | 01.2008 - 07.2014 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS Sport Wagon | 3.6 AWD | 01.2008 - 07.2014 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | STS | 3.6 | 09.2007 - 12.2012 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | STS | 3.6 AWD | 01.2005 - 12.2011 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Camaro | 3.6 | 02.2009 - 12.2015 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Trailblazer | 3.6 | 11.2014 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Traverse | 3.6 | 09.2008 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Traverse | 3.6 AWD | 09.2008 - | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Acadia | 3.6 | 05.2015 - 03.2017 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Trailblazer | 3.6 | 06.2013 - | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Acadia | 3.6 | 09.2006 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Acadia | 3.6 AWD | 09.2006 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Enclave | 3.6 | 04.2007 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Enclave | 3.6 AWD | 04.2007 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | La Crosse | 3.6 | 09.2004 - 12.2007 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Allure | 3.6 | 09.2007 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Rendezvouz | 3.6 | 09.2004 - 12.2006 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Buick | Rendezvouz | 3.6 AWD | 09.2005 - 12.2006 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 | 09.2003 -12.2010 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | CTS | 3.6 AWD | 07.2007 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | SRX | 3.6 | 09.2003 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | SRX | 3.6 AWD | 09.2003 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | STS | 3.6 | 09.2004 - 12.2007 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Cadillac | STS | 3.6 AWD | 09.2004 - 12.2005 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Caprice | 3.6 | 01.2010 - 12.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Captiva | 3.6 | 01.2008 - | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Captiva Sport | 3.6 | 01.2008 - 08.2011 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Captiva Sport | 3.6 AWD | 09.2007 - 08.2011 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Colorado Crew Cab | 3.6 | 09.2012 - | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Colorado Crew Cab | 3.6 AWD | 09.2012 - 12.2014 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Equinox | 3.6 | 09.2007 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Equinox | 3.6 AWD | 09.2007 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Lumina | 3.6 | 01.2010 - 12.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Malibu | 3.6 | 01.2008 - 12.2012 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Trailblazer | 3.6 | 06.2013 - | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Chevrolet | Trailblazer | 3.6 AWD | 01.2013 - | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Acadia | 3.6 | 09.2006 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| GMC | Acadia | 3.6 AWD | 09.2006 - 12.2008 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Daewoo | Adventra | 3.6 | 04.2003 - | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Pontiac | G6 | 3.6 | 09.2006 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Pontiac | G8 | 3.6 | 09.2008 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Pontiac | Torrent | 3.6 | 09.2007 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Pontiac | Torrent | 3.6 AWD | 09.2007 - 12.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Berlina Kombi (VE) | 3.0 | 08.2009 - 05.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Berlina Sedan (VE) | 3.0 | 08.2009 - 05.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Captiva 7 (CG) | 3.0 | 03.2011 - 12.2018 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Commodore Kombi (VE) | 3.0 | 09.2009 - 05.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Commodore Kombi (VF) | 3.0 | 05.2013 - 10.2017 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Commodore pick-up (VE) | 3.0 | 09.2010 - 10.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Commodore Sedan (VE) | 3.0 | 09.2009 - 05.2013 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Commodore Sedan (VF) | 3.0 | 05.2013 - 10.2017 | LF1 (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 80.3 |
| Holden | Captiva CG | 3.2 | 12.2006 - 09.2008 | 10HMA (HFV6) | 6 | 4M2273H | 2994 cc | DOHC 24V | -.25 | 89.0 | 85.6 |
| Holden | Calais (VE) | 3.6 | 05.2008 - 05.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Caprice (WM) | 3.6 | 08.2009 - 08.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Kombi (VE) | 3.6 | 09.2009 - 05.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore pick-up (VE) | 3.6 | 09.2009 - 10.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Sedan (VE) | 3.6 | 09.2009 - 10.2013 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Statesman (WM) | 3.6 | 09.2008 - 12.2010 | LLT (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Adventra Kombi (VZ) | 3.6 AWD | 07.2006 - 09.2009 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Calais (VE) | 3.6 | 07.2006 - 05.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Caprice (WL) | 3.6 | 08.2004 - 07.2006 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Caprice (WM) | 3.6 | 07.2006 - 08.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Kombi (VE) | 3.6 | 04.2008 - 05.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Kombi (VF) | 3.6 | 05.2013 - 10.2017 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore pick-up (VE) | 3.6 | 09.2007 - 10.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore pick-up (VF) | 3.6 | 05.2013 - 10.2017 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore pick-up (VZ) | 3.6 | 09.2004 - 08.2007 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Sedan (VE) | 3.6 | 07.2006 - 05.2013 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Sedan (VF) | 3.6 | 05.2013 - 10.2017 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Commodore Sedan (VZ) | 3.6 | 09.2004 - 07.2006 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Statesman (WM) | 3.6 | 07.2006 - 12.2010 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Holden | Statesman (WL) | 3.6 | 08.2004 - 07.2006 | LY7 (HFV6) | 6 | 4M2273H | 3564 cc | DOHC 24V | -.25 | 94.0 | 85.6 |
| Opel | Signium liftback (Z03) | 2.8 V6 Turbo | 09.2005 - 12.2008 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C (Z02) | 2.8 V6 Turbo | 08.2005 - 10.2006 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C GTS (Z02) | 2.8 V6 Turbo | 08.2005 - 08.2008 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C Kombi (Z02) | 2.8 V6 Turbo | 08.2005 - 10.2008 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Vauxhall | Signium (Z03) | 2.8 V6 Turbo | 07.2005 - 05.2008 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Vauxhall | Vectra Mk II (C) GTS (Z02) | 2.8 V6 Turbo | 08.2005 - 05.2009 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Vauxhall | Vectra Mk II (C) Kombi (Z02) | 2.8 V6 Turbo | 08.2005 - 05.2009 | Z28NEL | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Signium liftback (Z03) | 2.8 V6 Turbo | 01.2006 - 12.2008 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C (Z02) | 2.8 V6 Turbo | 08.2005 - 08.2008 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C OPC (Z02) | 2.8 V6 Turbo | 09.2006 - 08.2008 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C GTS (Z02) | 2.8 V6 Turbo | 08.2005 - 09.2008 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Opel | Vectra C Kombi (Z02) | 2.8 V6 Turbo | 08.2005 - 09.2008 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Vauxhall | Signium (Z03) | 2.8 V6 Turbo | 05.2007 - 10.2008 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Vauxhall | Vectra Mk II (C) GTS (Z02) | 2.8 V6 Turbo | 02.2006 - 05.2009 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Vauxhall | Vectra Mk II (C) Kombi (Z02) | 2.8 V6 Turbo | 08.2006 - 05.2009 | Z28NET | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Saab | 9-3 (YS3F, E79, D79, D75) | 2.8 V6 Turbo | 03.2005 - 02.2015 | LP9 (HFV6) | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Saab | 9-3 kabriolet (YS3F) | 2.8 V6 Turbo | 02.2006 - 02.2015 | LP9 (HFV6) | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Saab | 9-3 Kombi (E50) | 2.8 V6 Turbo | 03.2005 - 02.2015 | LP9 (HFV6) | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
| Saab | 9-4X | 2.8 V6 Turbo | 02.2011 - 12.2011 | LP9 (HFV6) | 6 | 4M2273H | 2792 cc | DOHC 24V | -.25 | 89.0 | 74.8 |
