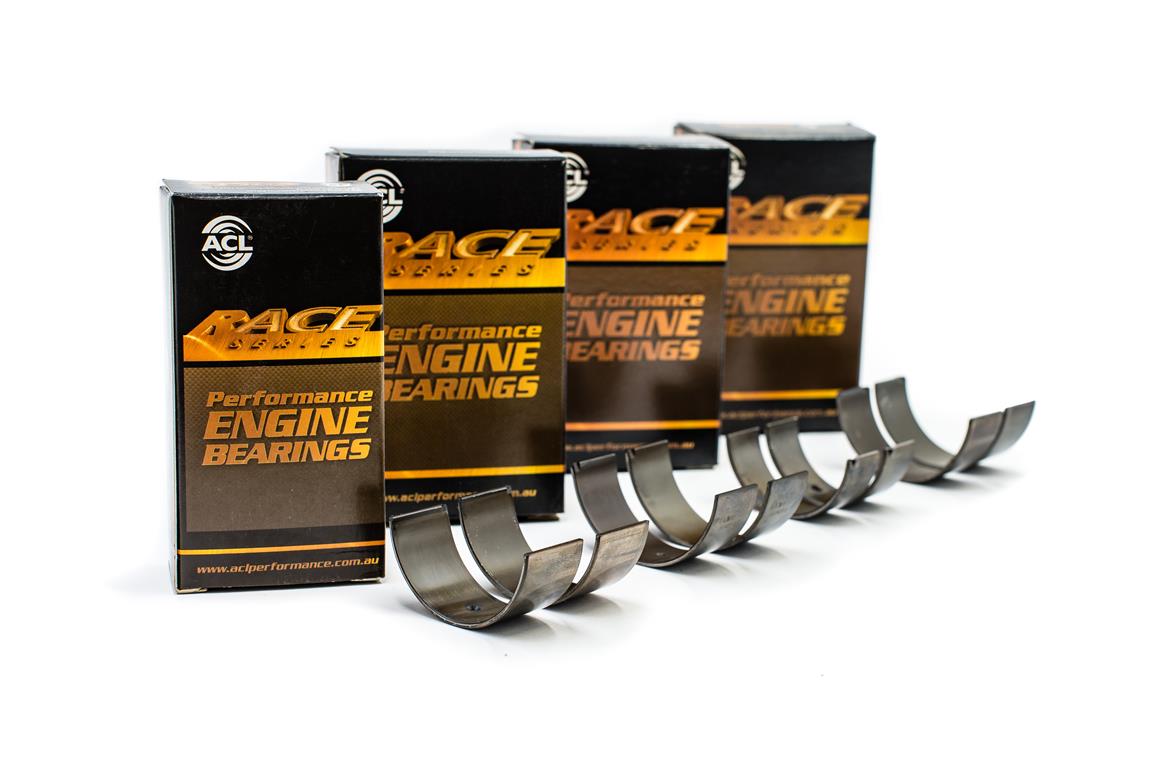

ACL
4B8376H-.25
4B8376H-.25
Regular price
€84,97 EUR
Regular price
Sale price
€84,97 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 56.000 / 56.024 |
| Shaft [mm] | 52.987 / 53.000 |
| Max. Wall | 1.485 |
| Max. Length | 19.83 |
| Half type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota | Previa I (_R1_, _R2_) | 2.4 16V | 09.1990 - 07.1996 | 2TZ-FE | 4 | 4B8376H | 2438 cc | DOHC 16V | -.25 | 95.0 | 86.0 |
| Toyota | Previa I (_R1_, _R2_) | 2.4 16V 4WD | 09.1990 - 12.1997 | 2TZ-FE | 4 | 4B8376H | 2438 cc | DOHC 16V | -.25 | 95.0 | 86.0 |
| Toyota | Previa I (_R1_, _R2_) | 2.4 16V | 09.1993 - 12.1997 | 2TZ-FZE | 4 | 4B8376H | 2438 cc | DOHC 16V | -.25 | 95.0 | 86.0 |
| Toyota | Previa I (_R1_, _R2_) | 2.4 16V 4WD | 05.1990 - 12.1999 | 2TZ-FZE | 4 | 4B8376H | 2438 cc | DOHC 16V | -.25 | 95.0 | 86.0 |
| Toyota | Hilux VI pick-up (_N1_) | 2.0 8V | 08.1998 - 07.2001 | 1RZ | 4 | 4B8376H | 1998 cc | SOHC 8V | -.25 | 86.0 | 86.0 |
| Toyota | Hilux VI pick-up (_N1_) | 2.0 8V | 11.1997 - 07.2005 | 1RZ-E | 4 | 4B8376H | 1998 cc | SOHC 8V | -.25 | 86.0 | 86.0 |
| Toyota | Hilux VI pick-up (_N1_) | 2.0 8V 4WD | 09.1997 - 07.2004 | 1RZ-E | 4 | 4B8376H | 1998 cc | SOHC 8V | -.25 | 86.0 | 86.0 |
| Toyota | Qualis (_F5_) | 2.0 8V | 01.1999 - 10.2004 | 1RZ-E | 4 | 4B8376H | 1998 cc | SOHC 8V | -.25 | 86.0 | 86.0 |
| Toyota | TUV (_F7_, _F8_) | 2.0 8V | 10.2000 - 06.2005 | 1RZ-E | 4 | 4B8376H | 1998 cc | SOHC 8V | -.25 | 86.0 | 86.0 |
| Toyota | all | 2.4 8V | 08.1989 - 09.1998 | 2RZ | 4 | 4B8376H | 2438 cc | SOHC 8V | -.25 | 95.0 | 86.0 |
| Toyota | Hilux VI pick-up (_N1_) | 2.7 16V | 10.1998 - 04.2005 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Granvia (_H2_, _H1_) | 2.7 16V | 08.1995 - 09.1998 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Hiace IV (_H1_, _H2_) | 2.7 16V | 04.1998 - 12.2006 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Coaster Bus (_B4_, _B5_) | 2.7 16V | 02.1993 - 10.2003 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Land Cruiser Prado (_J12_) | 2.7 16V | 09.2002 - 08.2004 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Land Cruiser 90 (_J9_) | 2.7 16V | 06.1995 - 08.2002 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Tacoma pick-up (_N1_) | 2.7 16V | 01.1995 - 08.2004 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | 4 Runner III (_N18_) | 2.7 16V | 11.1995 - 07.2002 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Dyna 200 Platform / Chassis | 2.7 16V | 06.1995 - 07.2001 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8) | 2.7 16V | 05.2000 - 04.2007 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | T100 pick-up (_CK_) | 2.7 16V | 09.1993 - 12.1998 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Tarago | 2.7 16V | 08.1998 - 08.2004 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Hiace IV (_H1_, _H2_) | 2.7 16V 4WD | 04.1997 - 08.2006 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Tacoma pick-up (_N1_) | 2.7 16V 4WD | 01.1995 - 08.2004 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Hilux VI pick-up (_N1_) | 2.7 16V 4WD | 10.1998 - 04.2005 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Hilux III SUV (_N1_, _N2_) | 2.7 16V 4WD | 01.1996 - 08.2005 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Hilux VI Platform / Chassis (_N1_) | 2.7 16V 4WD | 08.1997 - 08.2005 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | 4 Runner III (_N18_) | 2.7 16V 4WD | 11.1995 - 07.2002 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Regius Ace (_H4_) | 2.7 16V | 04.1997 - 04.2002 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
| Toyota | Regius Ace (_H4_) | 2.7 16V 4WD | 04.1997 - 04.2002 | 3RZ-FE | 4 | 4B8376H | 2693 cc | DOHC 16V | -.25 | 95.0 | 95.0 |
