Pedders Shackle Kit

A leaf spring shackle is usually mounted at the rear of the leaf spring and this has two functions, it mounts the spring to the chassis and it allows for the vertical movement of the spring.

When a vehicle is fitted with leaf springs, they are mounted to the chassis using a fixed pin(usually at the front) and a swinging shackle (usually fitted to the rear of the spring).

As the vehicle traverses over uneven road surfaces, the leaf spring flexes. The leaf spring is designed with an amount of camber, this is the arc of the spring.

When the spring moves upwards it has a tendency to flatten out and inturn, this will increase its length, to allow for this a swinging shackle is fitted.

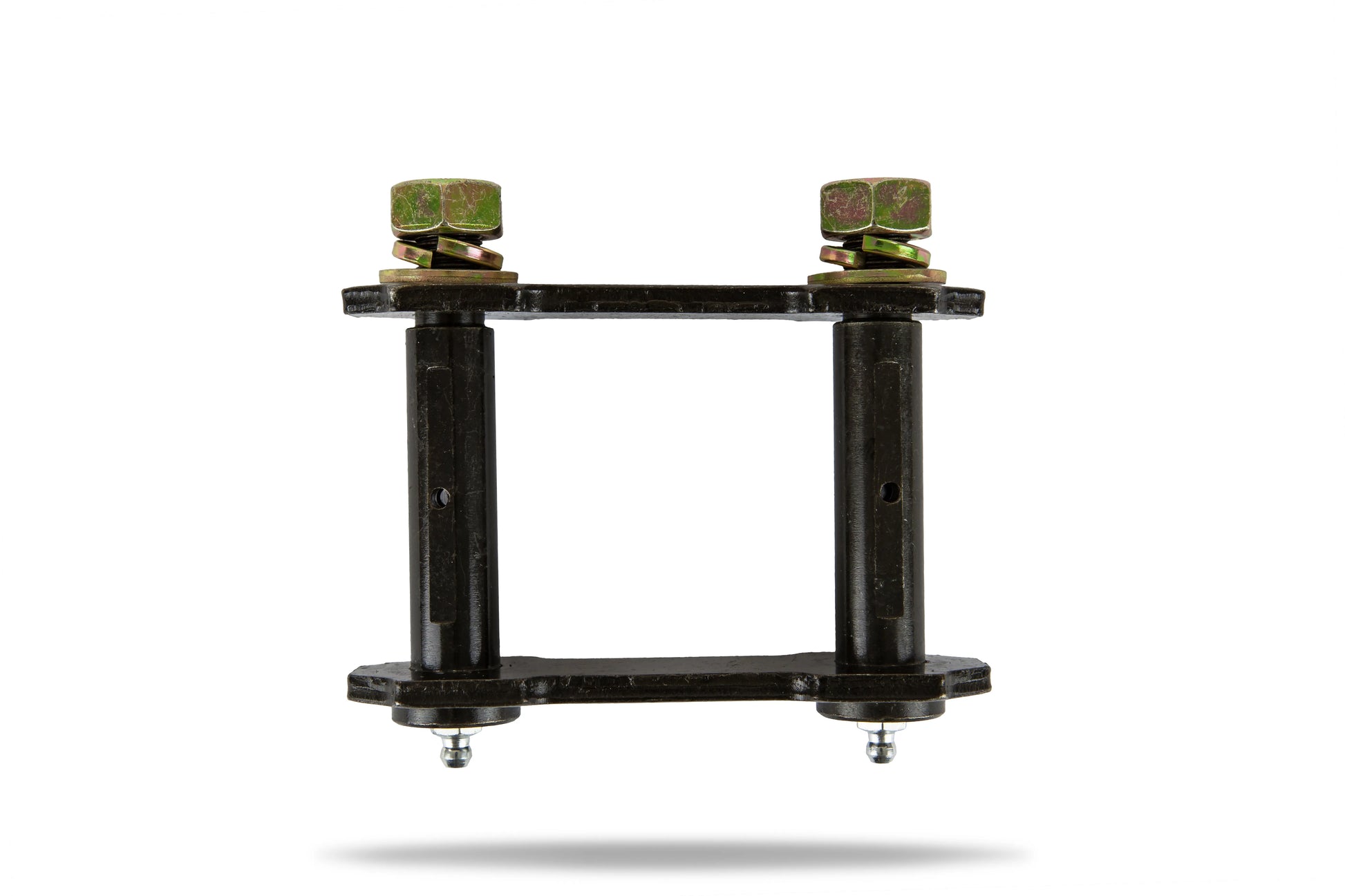

Pedders Shackle kits are a heavy duty replacement fitted with grease nipples to allow “in-situ” greasing of polyurethane bushes.

Features and benefits

• Heavy Duty design
• Greasable
• All backed by our 2 year / 25,000 mile warranty

Overall Height 1 [mm]	42
Pin Centre to Centre [mm]	85
Inner Width 1 [mm]	68
Fitting Position	Rear
Bolts Greaseable	Yes
Shackle Plate Thickness 1 [mm]	6
Shackle Plate Thickness 2 [mm]	6
Type	Shackle
Pin Outer Diameter 1 [mm]	18
Overall Length [mm]	107
Overall Width [mm]	127

Compatibility
Chevrolet	LUV	KB20 & KB25, Ute	KB20 & KB25, Ute | 1972-1981	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Isuzu	D Max	2WD Hi-Ride, 3.0lt 4cyl TD	2WD Hi-Ride, 3.0lt 4cyl TD | 2008-2012	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Isuzu	D Max	4WD, 3.0lt 4cyl TD	4WD, 3.0lt 4cyl TD | 2008-2012	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Isuzu	T Series	TFR Series	TFR Series | 1988-1990	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Mazda	E Series Van & Bus	E1600 BN2N9	E1600 BN2N9 | 1978-1983	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Mazda	E Series Van & Bus	E1300-E2200	E1300-E2200 | 1981-1983	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	4 Runner	LN & YN60 Non IFS	LN & YN60 Non IFS | 1984-1985	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	4 Runner	LN61 & YN63 With IFS	LN61 & YN63 With IFS | 1985-1989	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Hilux 2WD	LN / RN30 / 40, LN30 & LN40	LN / RN30 / 40, LN30 & LN40 | 1978-1983	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Hilux 2WD	LN / RN30 / 40, RN30, RN31, RN40 & RN41	LN / RN30 / 40, RN30, RN31, RN40 & RN41 | 1978-1983	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, LN55R & LN56R	LN / YN55 / 56 / 57 / 58, LN55R & LN56R | 1983-1988	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R | 1983-1988	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Hilux 4WD	MK1 LN36-46 & RN36-46	MK1 LN36-46 & RN36-46 | 1979-1983	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Hilux 4WD	MK3 LN105R, YN106R, Leaf Front & Rear	MK3 LN105R, YN106R, Leaf Front & Rear | 1988-1997	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Landcruiser	40 Series, BJ, FJ & HJ45	40 Series, BJ, FJ & HJ45 | 1969-1980	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
Toyota	Landcruiser	40 Series, FJ, HJ45 & HJ47	40 Series, FJ, HJ45 & HJ47 | 1980-1985	BUSHES	Rear Shackle Bushes / Kits	Pedders Shackle Kit
