4322

Pedders Shackle Kit

A leaf spring shackle is usually mounted at the rear of the leaf spring and this has two functions, it mounts the spring to the chassis and it allows for the vertical movement of the spring.

When a vehicle is fitted with leaf springs, they are mounted to the chassis using a fixed pin(usually at the front) and a swinging shackle (usually fitted to the rear of the spring).

As the vehicle traverses over uneven road surfaces, the leaf spring flexes. The leaf spring is designed with an amount of camber, this is the arc of the spring.

When the spring moves upwards it has a tendency to flatten out and inturn, this will increase its length, to allow for this a swinging shackle is fitted.

Pedders Shackle kits are a heavy duty replacement fitted with grease nipples to allow “in-situ” greasing of polyurethane bushes.

Features and benefits

• Heavy Duty design
• Greasable
• All backed by our 2 year / 25,000 mile warranty

Tech Info

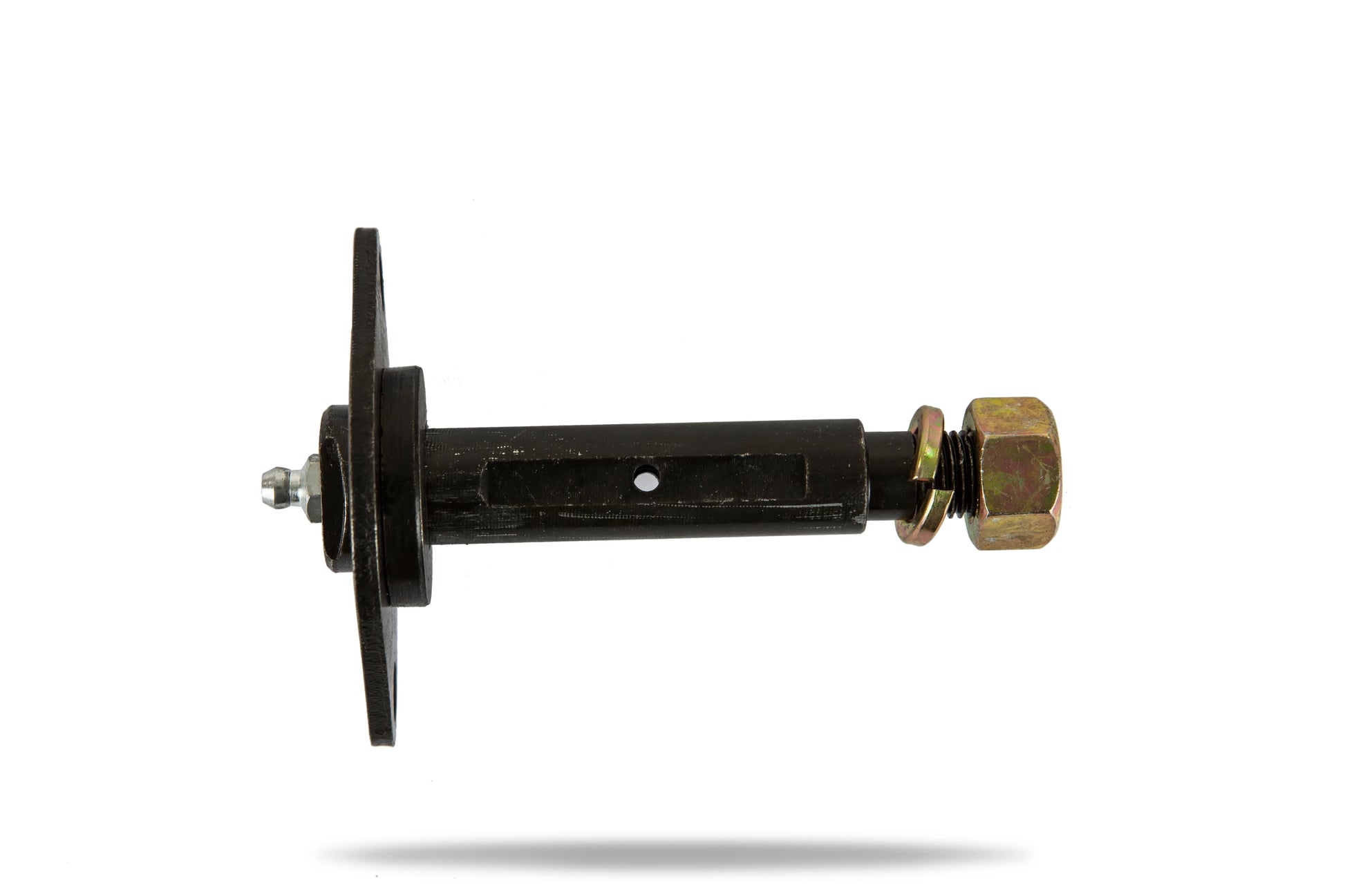

Spring eye pin kit. ONE pin

Compatibility
Toyota	4 Runner	LN & YN60 Non IFS	LN & YN60 Non IFS | 1984-1985	BUSHES	Front Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	4 Runner	LN61 & YN63 With IFS	LN61 & YN63 With IFS | 1985-1989	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	RN10, RN13, RN15	RN10, RN13, RN15 | 1968-1972	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	RN16, 20, 22, 23, 25	RN16, 20, 22, 23, 25 | 1972-1978	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RN30 / 40, LN30 & LN40	LN / RN30 / 40, LN30 & LN40 | 1978-1983	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RN30 / 40, RN30, RN31, RN40 & RN41	LN / RN30 / 40, RN30, RN31, RN40 & RN41 | 1978-1983	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, LN55R & LN56R	LN / YN55 / 56 / 57 / 58, LN55R & LN56R | 1983-1988	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R	LN / YN55 / 56 / 57 / 58, YN56R, YN57R & YN58R | 1983-1988	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, LN85R, LN86R & RN85R	LN / RN / YN85 / 86 / 90R, LN85R, LN86R & RN85R | 1988-1997	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, RN90R	LN / RN / YN85 / 86 / 90R, RN90R | 1988-1997	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RN / YN85 / 86 / 90R, YN85R Grinner	LN / RN / YN85 / 86 / 90R, YN85R Grinner | 1988-1997	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RZN147 / 149 / 154R, LN147R	LN / RZN147 / 149 / 154R, LN147R | 1997-2005	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 2WD	LN / RZN147 / 149 / 154R, RZN147R, RZN149R & RZN154R	LN / RZN147 / 149 / 154R, RZN147R, RZN149R & RZN154R | 1997-2005	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 4WD	IMPORT LN/YN107-111, RN106-110, .IFS Front, Leaf Rear	IMPORT LN/YN107-111, RN106-110, .IFS Front, Leaf Rear | 1988-1997	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 4WD	MK1 LN36-46 & RN36-46	MK1 LN36-46 & RN36-46 | 1979-1983	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 4WD	MK2 YN60-67 & LN60-67, Leaf Sprung	MK2 YN60-67 & LN60-67, Leaf Sprung | 1983-1988	BUSHES	Front Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 4WD	MK2 YN60-67 & LN60-67, Leaf Sprung	MK2 YN60-67 & LN60-67, Leaf Sprung | 1983-1988	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 4WD	MK3 LN105R, YN106R, Leaf Front & Rear	MK3 LN105R, YN106R, Leaf Front & Rear | 1988-1997	BUSHES	Front Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Hilux 4WD	MK3 LN105R, YN106R, Leaf Front & Rear	MK3 LN105R, YN106R, Leaf Front & Rear | 1988-1997	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit	Spring eye pin kit. ONE pin
Toyota	Landcruiser	40 Series, BJ, FJ & HJ45	40 Series, BJ, FJ & HJ45 | 1969-1980	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit
Toyota	Landcruiser	40 Series, FJ, HJ40 & 42	40 Series, FJ, HJ40 & 42 | 1980-1985	BUSHES	Rear Spring All Bushes / Kits	Pedders Eye Pin Kit
Toyota	Landcruiser	40 Series, FJ, HJ45 & HJ47	40 Series, FJ, HJ45 & HJ47 | 1980-1985	BUSHES	Rear Fixed Eye Bushes / Kits	Pedders Eye Pin Kit
